Stainless steel load cell 10kg 20kg 50kg 100kg 200kg 500kg Bending beam load cell

Place of Origin : China

Brand Name : Forsentek

Model Number : FSH

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 3000pcs/month

Certification : CE

Usage : Belt scale load cell,hopper scales

Type : Bending beam load cell

Output : Analog Sensor

Contact Now

Stainless steel load cell

10kg 20kg 50kg 100kg 200kg 500kg

Features

  • Stainless steel construction
  • Laser welded,IP68 protection
  • Strain gauge technology,analog output,high accuracy

Dimensions

Stainless steel load cell 10kg 20kg 50kg 100kg 200kg 500kg Bending beam load cell

Specifications

Capacity 10kg 20kg 50kg 100kg 200kg 300kg 500kg
Rated output 2.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.018% R.O.
Hysteresis ±0.018% R.O.
Nonrepeatability ±0.017% R.O.
Creep(30min) ±0.017% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 390±10 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable Ø5.3*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

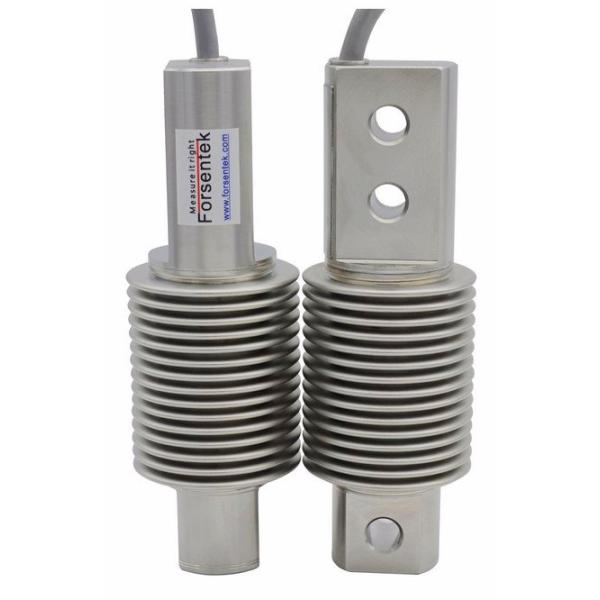

Stainless steel load cell IP68 protection

Stainless steel load cell 10kg 20kg 50kg 100kg 200kg 500kg Bending beam load cell

Waterproof load cell FSH

Stainless steel load cell 10kg 20kg 50kg 100kg 200kg 500kg Bending beam load cell

High accuracy load cell FSH

Stainless steel load cell 10kg 20kg 50kg 100kg 200kg 500kg Bending beam load cell
